CNC - DXF Component Preparation for Joinery Manufacture

• DXF files for machining
• Component sheets
• Cutting lists
• Datum and origin setup
• Pocket and rebate depths
• Hole positions and drilling details
• Edge identification (ABS, veneer, solid timber)
• Clear naming and numbering for workshop use

We produce detailed component sheets that give your workshop everything they need to manufacture efficiently.

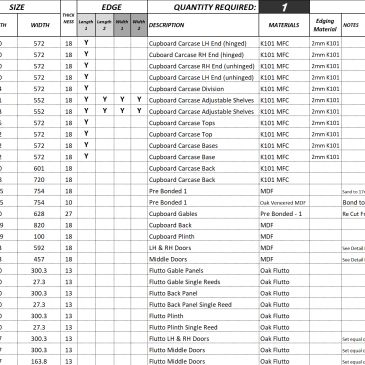

Component sheets include:

• Part dimensions
• Material and thickness
• Edge details
• Machining notes
• Orientation and grain direction
• Fixing locations
• Assembly references

These sheets reduce mistakes, speed up production, and improve communication between design and manufacturing teams.

Our DXF files are prepared cleanly and consistently, ensuring smooth import into your CNC software.

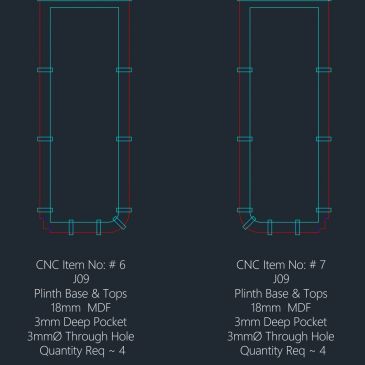

DXF files are prepared with:

• Correct layers
• Clean geometry
• Accurate tool paths
• Clear pocket depths
• Drilling positions
• No duplicate lines or broken polylines

This ensures your CNC operators receive files that run reliably without time‑consuming corrections.

If you’re also using our Joinery CAD Setting‑Out service, your CNC files can be generated directly from the same drawing package. This guarantees:

• Perfect alignment between drawings and machining
• Reduced errors
• Faster workshop turnaround
• Clear component referencing
